Lithium Titanate (Li2TiO3) — LTO
LTO batteries have very high level of safety and high power but are less energy dense. These cells have exceptional life cycle performance and do not degrade excessively when exposed to fast charging.
The LTO battery in the ZED70 Ti consists of individual 23Ah LTO cells combined into modules which provide a voltage of 330V, providing a capacity of 60kWh.
Check out the ZED70 Ti
Lithium Nickel Manganese Cobalt Oxide (LiNiMnCoO2)
(NCM or NMC, depending on elemental proportions) is a common and very successful Li-ion system with good all-round characteristics.

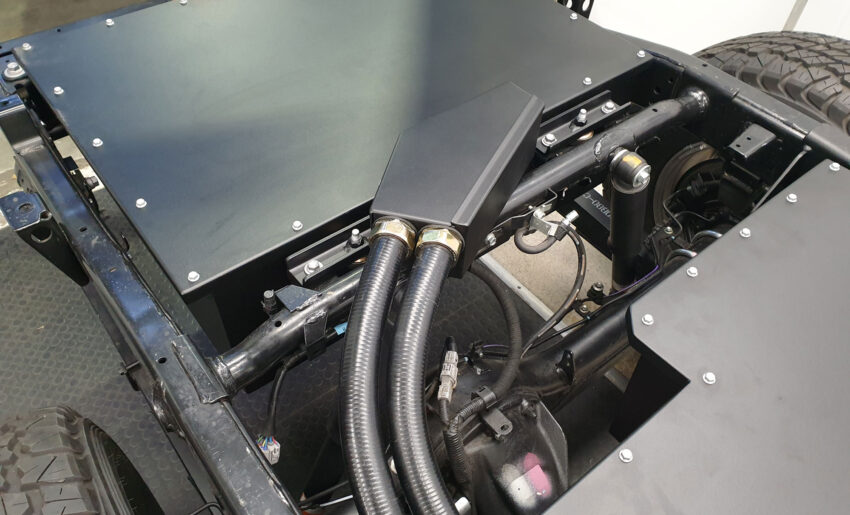

The NCM battery in the ZED70 consists of individual 17.5Ah NCM cells combined to provide a voltage of 335.8V and a capacity of 88kWh.
Check out the ZED70In 2020, ZERO Automotive partnered with OZ Minerals and the Adelaide Metropolitain Fire Brigade to test and validate the safety and stability of various battery technologies within stressful environments.
The LTO battery in the ZED70 Ti consists of individual 23Ah LTO cells combined into modules which provide a voltage of 330V, providing a capacity of 60kWh.
About out battery technologies
| LTO Cell Properties | |
|---|---|
| Life for Core Lithium use Case | Approx. 20,000 to 80% SOH (Approx. 4million km or 70,000 operating hours) |
| Maximum output | 194kW |
| Storage capacity | 60kWh |
| Rated Continuous Charge Rate | 480A |
| Rated Continuous Discharge Rate | 480A |
| Dimensions & Weight | Weight of Cells: 700kg Volume of cells: 0.395m3 Weight boxes + hardware: 120kg |
| Recharge time | Standard 3 phase: 3hrs Fast Charging DC-DC: 30mins (non-standard) |
| Recharge connection type | 3 Phase: Mennekes Type 2 DC-DC: CCS2 (non-standard) |
| NCM Cell Properties | |
|---|---|
| Life for Core Lithium use Case | Approx. 1,200 cycles to 80% SOH (Approx. 360,000 km or 6,600 running hours) |
| Maximum output | 150kW |
| Rated Continuous Charge Rate | 240A |
| Rated Continuous Discharge Rate | 240A |
| Dimensions & Weight | Weight of Cells: 500kg Volume of Cells: 0.293m3 Weight boxes + hardware: 120kg |
